BD 001

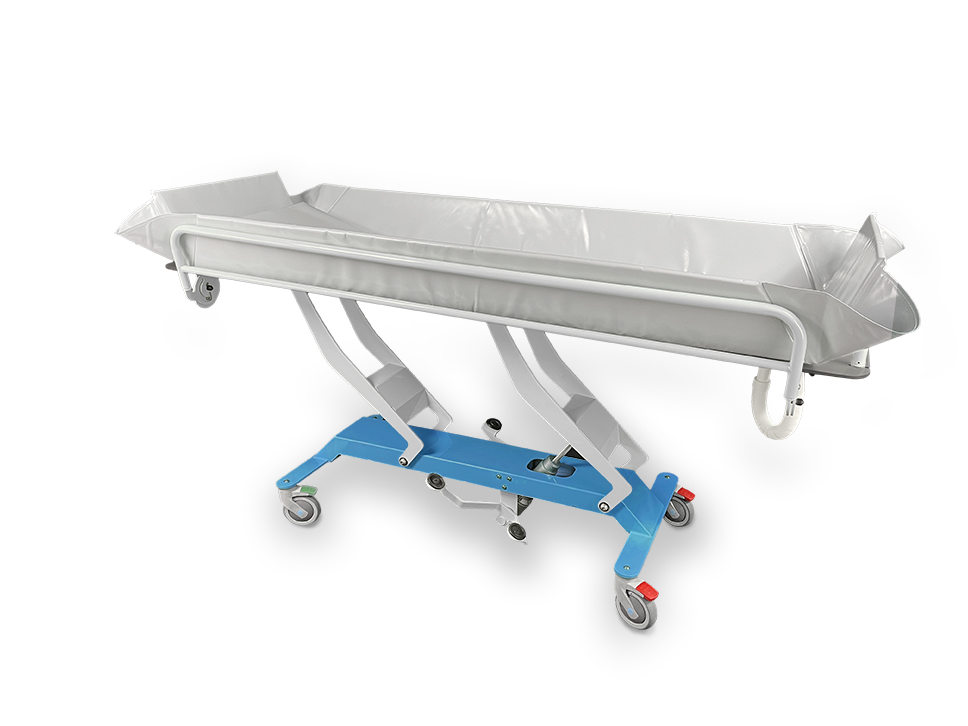

BDi 001 and BDe 001 shower trolleys are the perfect solution for patient’s treatment in assisted bathrooms of nursing homes, hospitals and care homes. They are designed and built to combine ergonomics for healthcare professionals with patient’s comfort.
FRAME
The trolley frame combines a sleek design, where every edge has been rounded, with an extremely sturdy structure which can support a load of up to 190 kg.

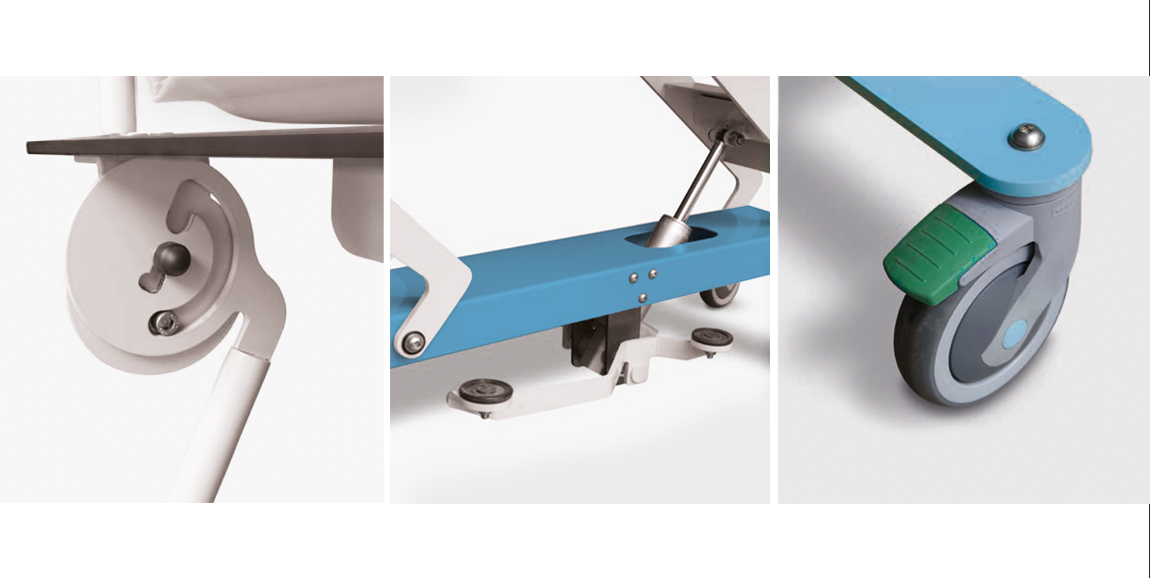

SIDE RAILS –SMART-LOCK SYSTEM
Patient’s safety is enhanced by the smart-lock system, which allows the healthcare profession- al to lift and lock – or unlock and lower – the side rail with a single hand and a in a single movement, while standing in a central position and keeping optimal control over the patient.

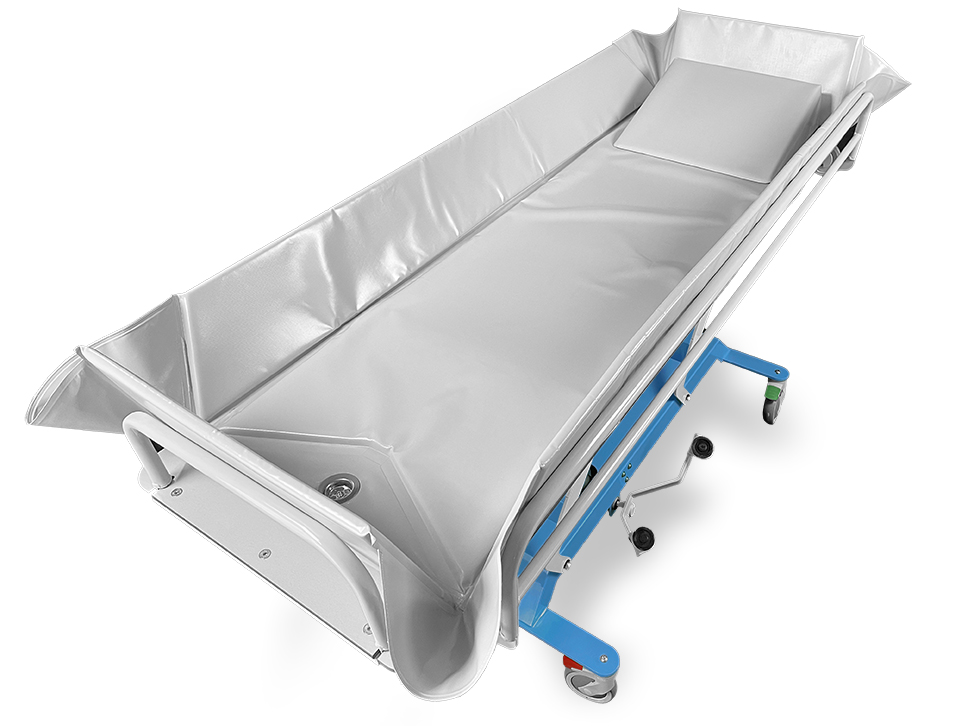

MATTRESS
BDi 001 and BDe 001 are equipped with high-strength, fire-resistant, waterproof, foam-padded pvc mattress and cushion.
The mattress includes a wide-diameter, stainless-steel drain, connected to a water drain hose, which is extendable up to 1500 mm.
CASTERS
Four high-performance, wide-diameter, non-marking casters – 3 with total lock and 1 with direction lock – facilitate long straight transfers and reduce caregiver’s stress.
HEIGHT ADJUSTMENT
The wide-range height adjustment allows to align the trolley deck to the bed and to transfer the patient without using lifting aids; during shower operations, the deck height can be adjusted to the ideal work position for the healthcare professional.
In BDi 001, height adjustment is driven by a hydraulic pump that can be operated from both sides by a pair of pedals.
BDe 001 features a Linak system which includes a 24 V, 6000 N linear actuator, a control box with IPx5 protection class, emergency stop button and remote control.
As height increases, the top tilts progressively to facilitate the flow of water towards the drain.
